High-Frequency Welded H-Beams: Precision Engineered Structural Steel

Introduction to High-Frequency Welded (HFW) H-Beams

In the modern construction and industrial landscape, efficiency and weight-to-strength ratios are paramount. Our High-Frequency Welded H-Beams represent the pinnacle of structural steel evolution. Unlike traditional hot-rolled sections or standard submerged arc welding (SAW), HFW H-beams are produced through a continuous process where high-frequency current (usually 10kH to 500kH) is used to heat the edges of the steel strips. These edges are then forged together under pressure, creating a solid-state molecular bond that is as strong as the base metal itself.

Technical Superiority and Manufacturing Process

Our factory utilizes state-of-the-art automated production lines. The process begins with high-quality steel coils being uncoiled, leveled, and precision-slit. The web and two flanges are fed simultaneously into the welding station.

The core advantage of the High-Frequency Welding method is the “Skin Effect” and “Proximity Effect” of the high-frequency current. This concentrates the heat on the very surface of the joining edges, allowing for incredibly fast welding speeds (up to 20-30 meters per minute). Because the heat-affected zone (HAZ) is extremely narrow, the internal microstructure of the steel remains stable, resulting in a beam with superior fatigue resistance and minimal internal stress.

Key Features & Advantages

1. Lightweight & High Strength: HFW H-beams can be produced with thinner webs than hot-rolled beams. This allows for a “lightweight” design that reduces the overall weight of a steel structure by 15% to 30%, leading to significant savings in foundation and transportation costs.

2. Dimensional Flexibility: We are not limited by standard rolling mill sizes. We can customize the height, flange width, and thickness to meet specific engineering requirements, offering architects more creative freedom.

3. High Geometric Accuracy: Our automated finishing ensures that the flange-to-web verticality and the straightness of the beam exceed international standards (ISO, ASTM, and EN).

4. Surface Quality: The welding seam is smooth and uniform, requiring minimal grinding. This provides an excellent substrate for galvanization, painting, or fireproof coating.

Applications in Global Infrastructure

Our H-Beams are exported globally for use in diverse environments:

• Industrial Workshops & Warehouses: Ideal for long-span portal frames where weight reduction is critical for cost-efficiency.

• Prefabricated Housing: The precision of HFW H-beams makes them the perfect skeleton for modular and “Green” building systems.

• Equipment Support Frames: Used extensively in power plants and chemical facilities for supporting heavy machinery.

• Photovoltaic (Solar) Brackets: Their high strength-to-weight ratio makes them a top choice for large-scale solar farm mounting structures.

• Bridge Engineering: Utilized in pedestrian bridges and highway sound barriers due to their durability and ease of installation.

Quality Assurance and Standards

Quality is the lifeline of our factory. Every batch of High-Frequency Welded H-Beams undergoes rigorous testing, including:

• Ultrasonic Flaw Detection: Ensuring 100% penetration and zero defects in the weld seam.

• Mechanical Property Testing: Verifying yield strength, tensile strength, and elongation.

• Chemical Analysis: Confirming the carbon and alloy content meets the specified grade (e.g., Q355B or ASTM A572 Grade 50).

• Visual & Dimensional Inspection: Checking for surface smoothness and millimetric accuracy.

Why Choose Our Factory?

As a specialized manufacturer, we understand that B2B buyers require reliability. We offer:

• Large-Scale Production Capacity: Ensuring timely delivery even for massive infrastructure projects.

• Global Export Experience: Familiarity with international shipping, packaging standards (seaworthy bundling), and customs documentation.

• Technical Support: Our engineers can assist in optimizing your structural designs to choose the most cost-effective beam specifications.

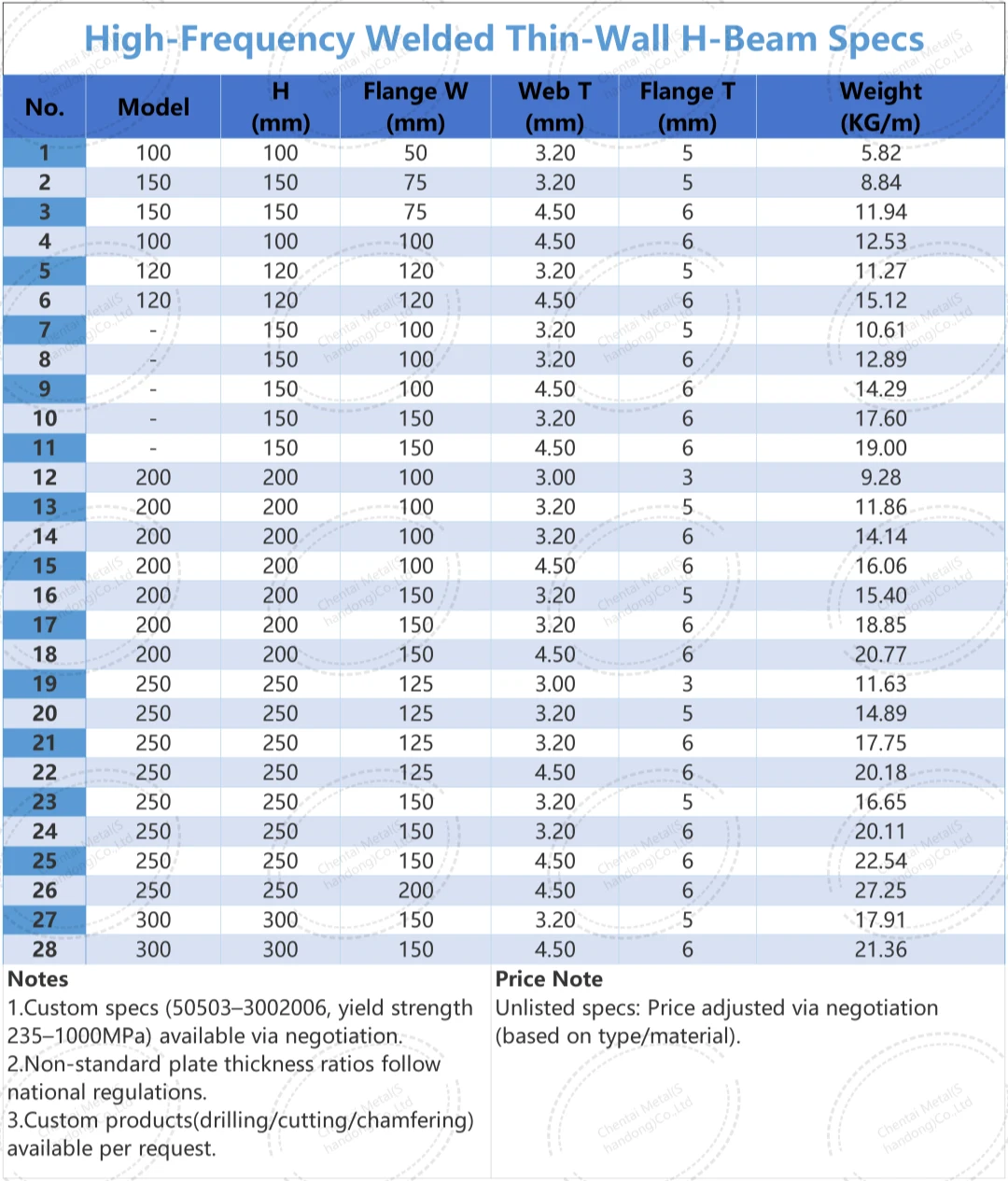

Specification Table (Sample)
