High-Strength Concrete Reinforcing Steel Rebar

Introduction to High-Performance Steel Rebar

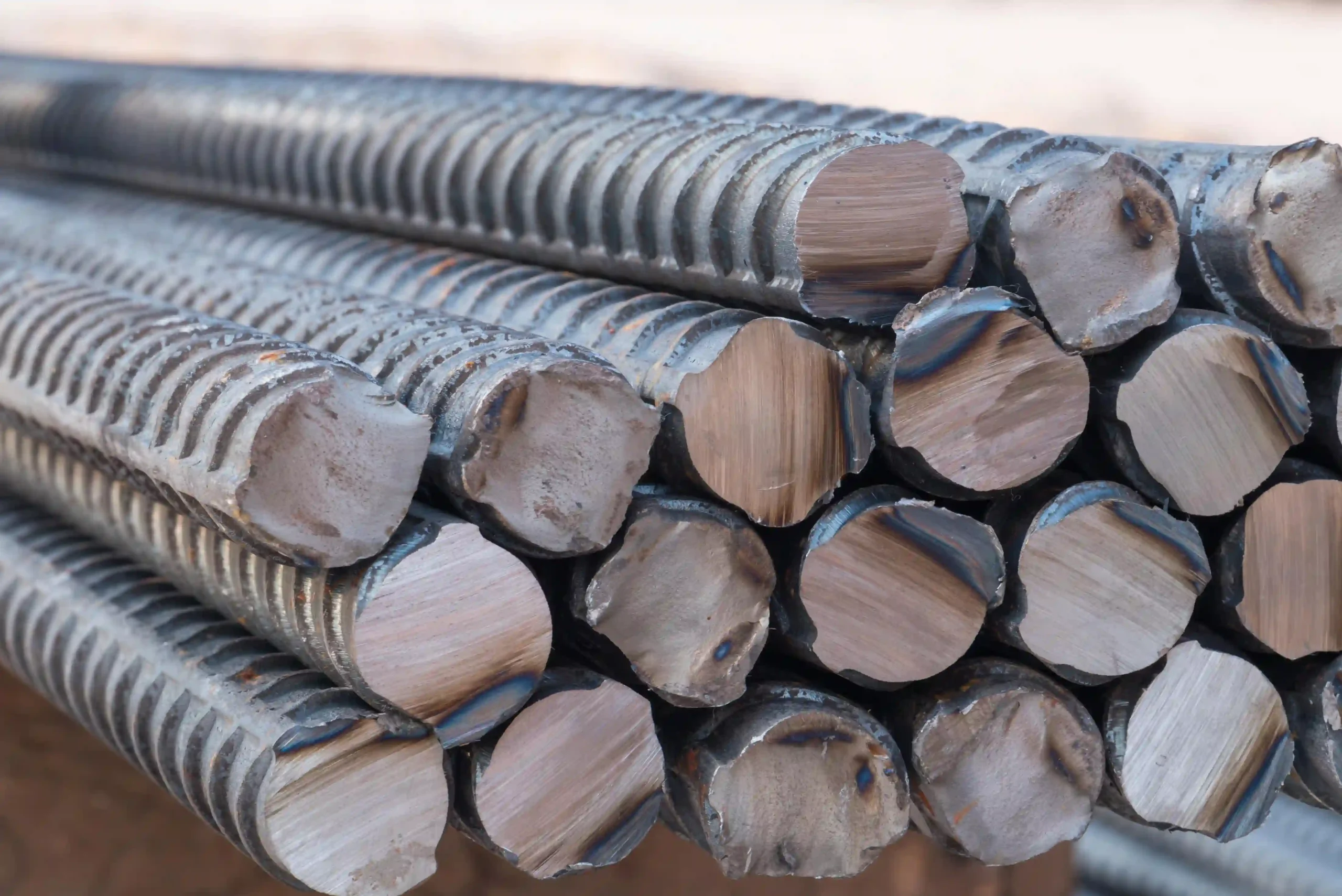

Steel Rebar, short for reinforcing bar, is the critical “skeleton” of modern construction. While concrete is exceptionally strong in compression, it lacks the necessary tensile strength to withstand bending and stretching forces. Our hot-rolled ribbed steel bars are designed to bridge this gap. By embedding our high-strength rebar into concrete, builders create a composite material that can withstand the immense stresses of skyscrapers, bridges, and industrial facilities.

At our facility, we produce rebar through a precision hot-rolling process followed by controlled cooling. This results in a product that balances hardness with the flexibility needed for onsite fabrication, meeting the rigorous demands of the global construction market.

Advanced Manufacturing & Material Science

The quality of rebar is determined by its chemical composition and the rolling process. Our factory utilizes high-purity iron ore and refined billets to ensure low impurity levels (such as Phosphorus and Sulfur), which significantly improves the weldability and cold-bending performance of the steel.

1. Thermal-Mechanical Treatment (TMT): We employ advanced TMT technology, where the red-hot steel is rapidly quenched with water. This creates a high-strength “tempered martensite” outer layer while maintaining a ductile “ferrite-pearlite” core. This unique structure allows our rebar to absorb energy during earthquakes without snapping.

2. Ribbed Pattern Optimization: Our rebar features a scientifically designed longitudinal and transverse rib pattern. This geometry increases the surface area for bonding, preventing the steel from slipping within the concrete matrix under extreme tension.

Key Features and Benefits

• Exceptional Seismic Performance: Our rebar is specifically tested for “Uniform Elongation,” a critical factor for buildings in earthquake-prone regions. It deforms safely rather than failing brittlely.

• Superior Weldability: Due to the optimized carbon equivalent (CEQ) in our chemical formula, our rebar can be easily welded using standard methods without compromising the strength of the joints.

• Corrosion Resistance: For projects in humid or coastal environments, we offer specialized options including epoxy coating or vanadium-alloying to enhance the protective oxide layer.

• Strict Dimensional Tolerance: Using automated rolling mills, we guarantee that every millimeter of the diameter and rib height conforms to the specified tolerance, ensuring predictable performance for structural engineers.

Diverse Global Applications

Our steel rebar is exported to over 50 countries, serving as the core reinforcement in:

• Residential & Commercial High-Rises: Providing the vertical and horizontal reinforcement for columns, beams, and floor slabs.

• Infrastructure Projects: Critical for the construction of highway overpasses, subway tunnels, and high-speed rail sleepers.

• Hydraulic Engineering: Used in the massive concrete pours of dams, reservoirs, and coastal sea walls.

• Energy Sector: Supporting the foundations of wind turbines, nuclear power plant containment structures, and oil refinery bases.

Quality Assurance and Testing

We operate a CNAS-certified laboratory where every heat of steel is subjected to rigorous testing protocols:

• Tensile & Yield Testing: Verifying the bar meets or exceeds the minimum yield strength (e.g., 420MPa, 500MPa, or 600MPa).

• Bend & Rebend Tests: Ensuring the material can be bent 180 degrees without developing cracks.

• Chemical Analysis: Using spectral analysis to confirm precise alloying elements for consistent performance.

• Mass Per Meter: Ensuring the weight of the steel delivered is exactly as specified, protecting our clients from material shortages.

Why Choose Our Factory for Your Supply Chain?

As a specialized steel manufacturer, we offer significant advantages for international buyers:

• Direct Factory Pricing: Eliminating middlemen to provide the most competitive rates for large-scale procurement.

• Standard Compliance: We provide Mill Test Certificates (MTC) according to EN 10204 3.1, ensuring full transparency.

• Flexible Logistics: Located near major international ports, we offer efficient shipping in containers or bulk carriers, with professional seaworthy packaging to prevent rust during transit.

• Customization: We can produce rebar in straight lengths (6m-15m) or coils (6mm-12mm) to suit your specific fabrication needs.

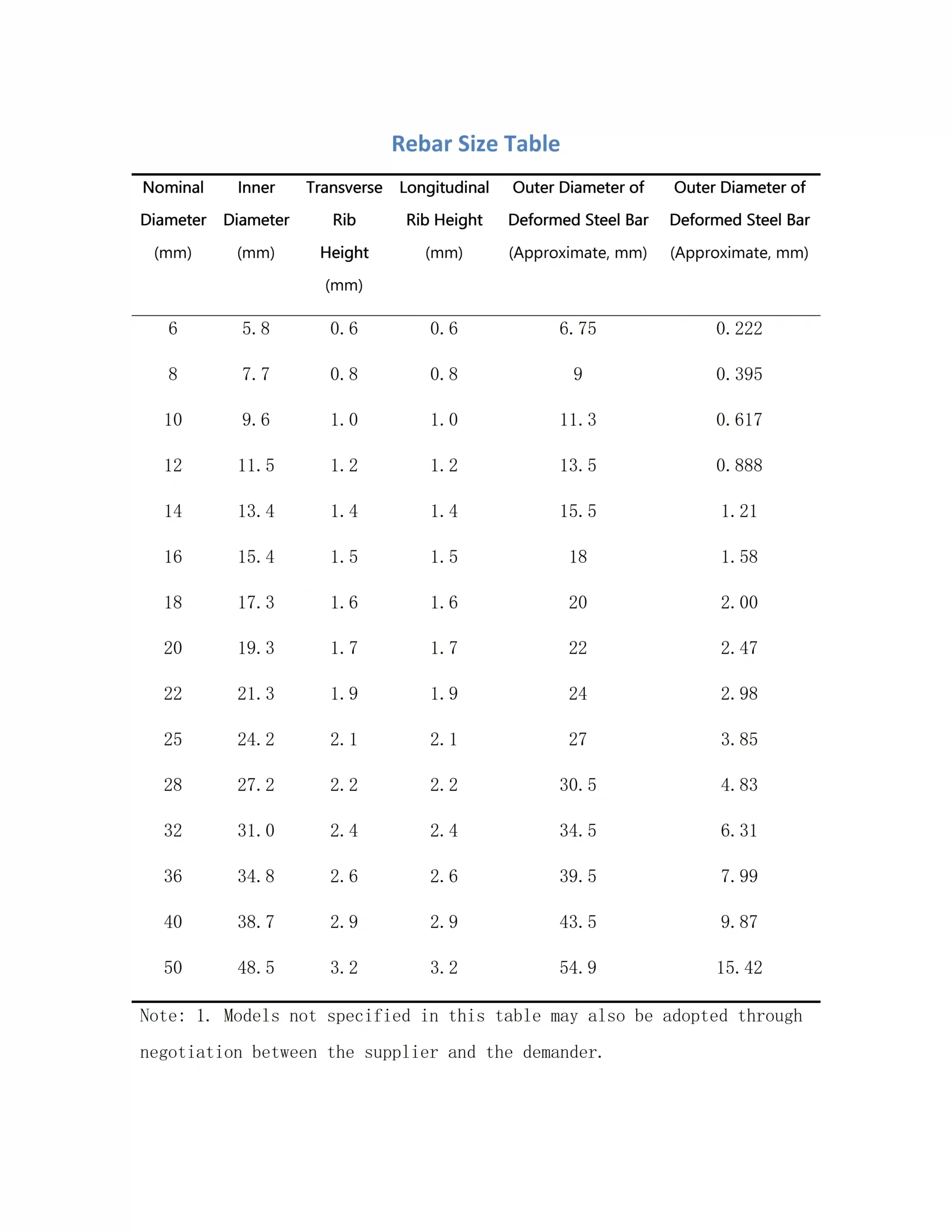

Technical Specifications Reference
